Product Name: SG100 Fixed Gas Detector (SG100 series)
Product Overview: SG100 series is a cost-effective gas detector for continuous monitoring of toxic gases, oxygen, flammable, VOC gases. It is IECEx, ATEX certified, with intrinsically safe explosion grade. Having a 2 wire or 3 wire 4 to 20 mA analog output, RS485 modbus output, optional HART output, making it to be compatible with most control systems. With optional wireless data transmission, customer is able to review, download the data remotely. Support both magnetic and remote control, flexible for setting.
Product Feature
- IP66/IP68 water & dust resistant

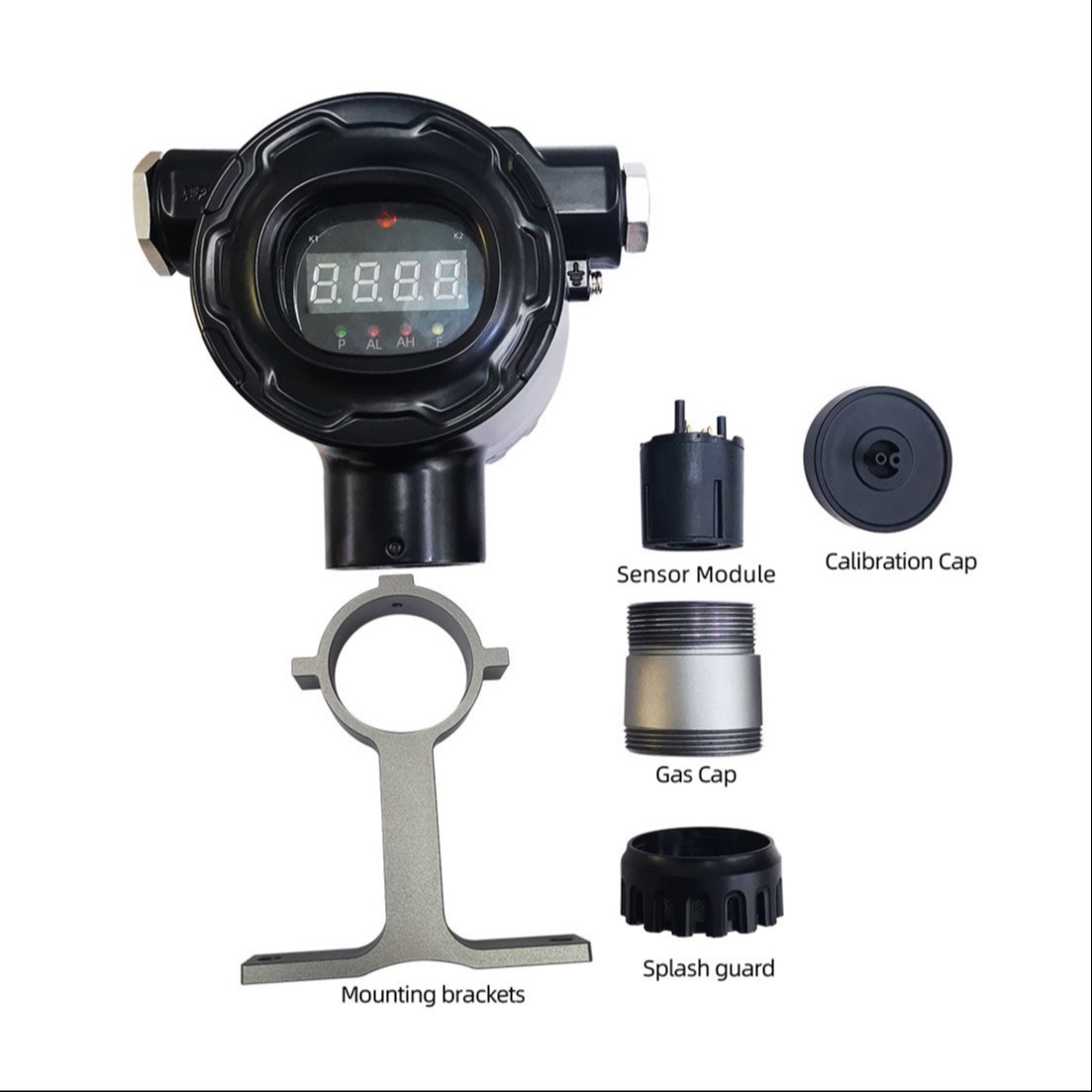

- Intelligent plug and play sensor module. the module support calibration by Safegas PC software, making replacement and maintenance easier.
- With standard splash guard to protect sensor for outdoor installation or environment with water splash.
- Small and light, weight is only 1 kg, and the detector comes with standard mounting bracket, easy for installation.
- Standard 4-20 mA analog signal output and RS485 modbus signal output, optional Hart output, 2 wire output. Compatible with most of control systems.
- The detector comes with 3 relays, including low/high/fault alarm relay (Optional)
- Support both magnetic and remote control, flexible for setting.
Technical parameters
| Gas Detected |
Toxic gases, oxygen, flammable, VOC gases |
| Detection Principle |
Electrochemical, NDIR, Catalytic, PID, etc |
| Measure range |
Specified according to application |
| Resolution |
Specified according to application |
| Accuracy |
≤±2-5%FS (Depending on the specific sensor) |
| Explosion-proof grade |
IECEx: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb; ATEX: Ex db IIC T6 Gb, Ex db ia IIC T6 Gb |
| Protection grade |
IP66/68 |
| Power dissipation |
Toxic gas<2.5W, flammable gas<4W |
| Communication mode |
4-20mA (3-wires),RS485 1~5V, Hart (Optional) |
| Wireless |
LORA, 4G (Optional) |
| Working voltage |
12-24VDC |
| Relay |
3 relays, including low/high/fault alarm relay (Optional) |
| Display |
LED display |
| Working temperature |
-40℃~70℃ (Catalytic sensor), -20℃~50℃ (Electrochemistry sensor) |
| Working pressure |
86kPa~106kPa |
| Casing material |
Die casting aluminum, S316 for option |
| Cable Entries |
1 x ¾ NPT & 1 x M20 Cable Entry Connections |
| Size |
157.8×128.8×69.6mm |
| Weight |
1.0Kg |
| Warranty |
1 year |

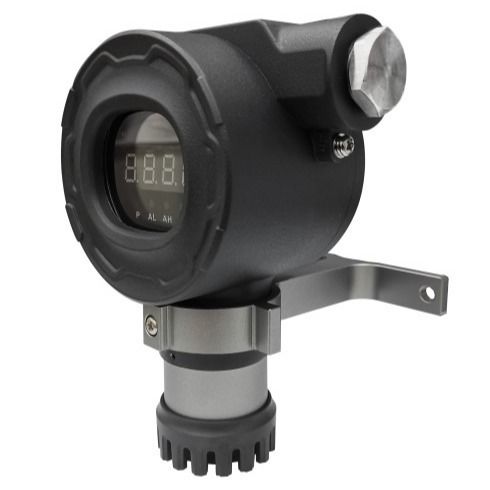

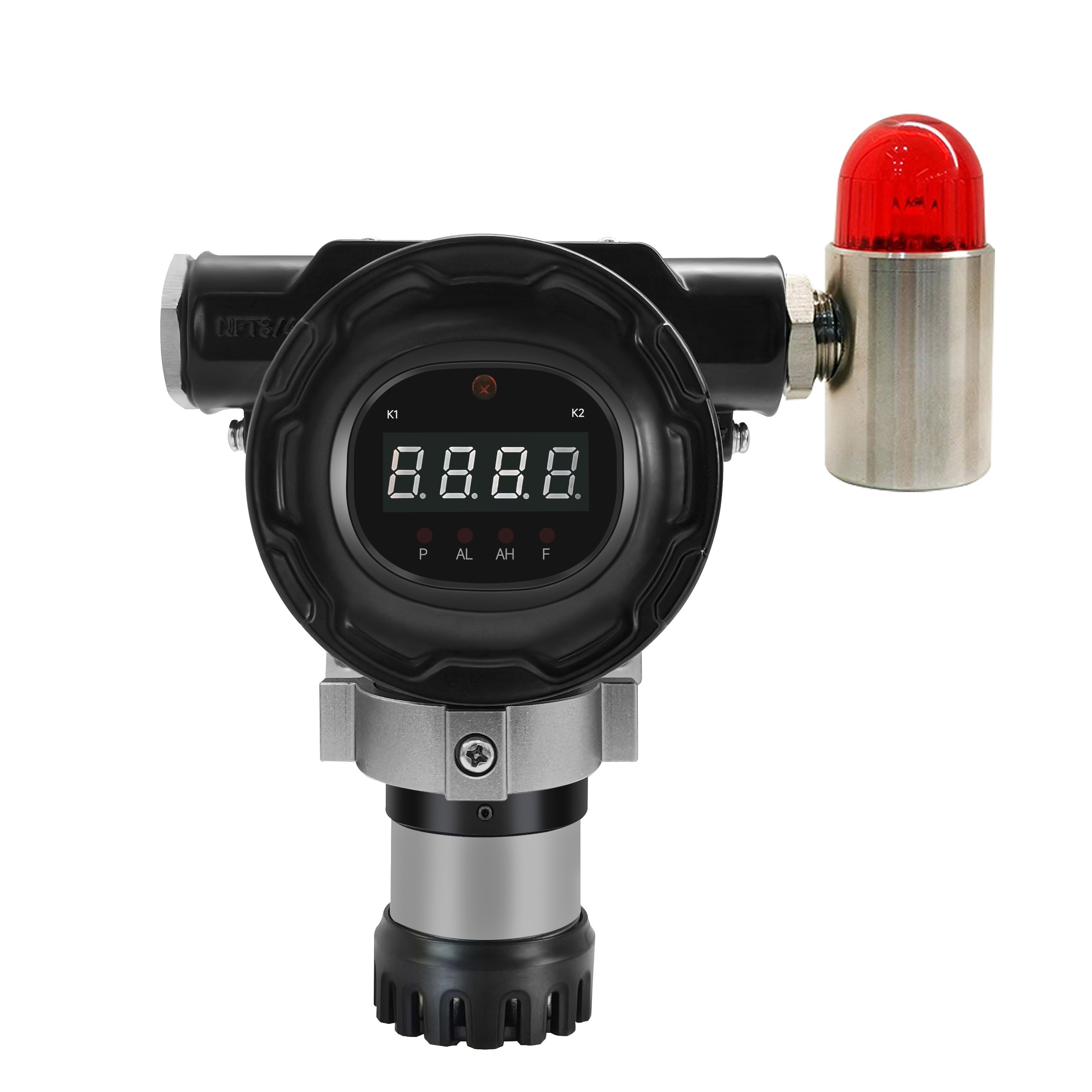

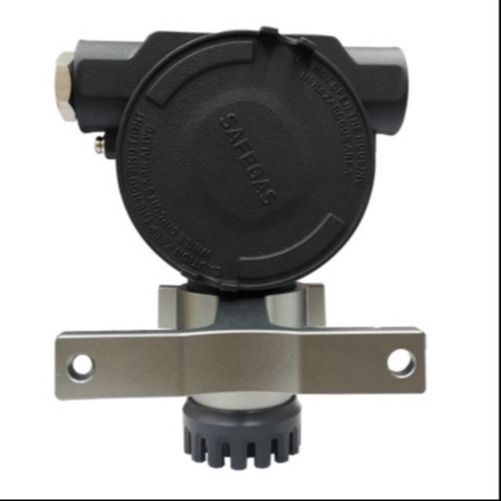

Product Images
Gas Detection Capabilities
Company Profile
Established in 2010, Shenzhen Yuante Technology Co., Limited is a company that focuses on the design, production and sales of high-end gas detection equipment and system for 16 years. With gas detector as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic,Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 10 years of rapid development, Yuante becomes the influential supplier.
For years, Yuante always insists on the management concept Market is orientation; Innovation is motivation; Quality to survival; Development to growth. With friendly, open and strict corporate culture and standardized management, Yuante gathers a lot of talents, and builds up the management team and R&D team. All the staff cooperates well in product development, production and maintenance, and has a deep understanding of the concept of customer oriented and has the service spirit through the company operation and management, to win the trust and support from customers.
The essence of a detector is the accuracy and faster response. Depending on years of measurement experience and unique solutions, through independent research and development, cooperative development and learning overseas latest technology, Yuante's products are advanced beyond the domestic brands and ahead of the global brands. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
