Name: CH4 0-1000PPM/0-100%LEL/0-100%Vol Portable Multi Gas Detector with Explosion-proof IECEx ATEX Certification
Brand: Shenzhen YuanTe Technology Co., Ltd. (Safegas)
SKU: SKY3000-SP
Price: 2,210.00 USD
Availability: InStock

Detay Bilgi

Gaz tespit edildi:	CH4	Tespit İlkesi:	Yarıiletken Prensipleri/Kataliz Prensipleri
Tedbir aralığı:	0-10000PPM, %0-100 LEL, %0-100 HACİM	Tepki süresi:	≤30 saniye
Kesinlik:	Özel gazlar hariç ≤±1-5%FS	Dil:	Çince/İngilizce/Polonya ((Daha fazla dil özelleştirilebilir)
Birim:	PPM, mg/m3, %LEL, %HACİM	Görüntülemek:	LCD (160x96), 180° döndürme
Arka ışık:	Alarm verildiğinde otomatik olarak açılır, arka ışık süresi manuel olarak ayarlanabilir	Çalışma sıcaklığı:	-20°C~+50°C
Patlamaya dayanıklı kalite:	IECEx: Ex ia IIC T4 Ga ATEX: II 1G Ex ia IIC T4 Ga	Nem:	10～%90RH (yoğuşma yok)
Sertifikasyon (AB düzenlemeleri):	2004/34/AB (ATEX)	Koruma sınıfı:	IP67
Vurgulamak:	Explosion-proof IECEx ATEX Certified Portable Gas Detector , LCD Display with 180° Rotation Multi Gas Detector , IP67 Protection Grade Gas Leak Detector

Ürün Açıklaması

Portable Multi-Gas Detector SKY3000-SP

Professional Gas Detection Solution

The SKY3000-SP portable gas detector is engineered for gas industry professionals, providing comprehensive multi-application functionality in a single robust unit. With multiple operation modes and integrated pump, this versatile instrument meets all measurement requirements for gas distribution and transmission pipeline applications.

Specifically designed for leak testing and confined space entry operations, the SKY3000-SP features bright LED alarm indicators that illuminate as gas levels rise, accompanied by audible alarms activated at pre-programmed safety thresholds.

Certified Explosion-Proof Safety: IECEx and ATEX certified with Ex ia IIC T4 Ga rating, suitable for explosive gas mixture zones 0, 1, and 2 with gas groups ⅡA, ⅡB, ⅡC and temperature groups T1-T4.

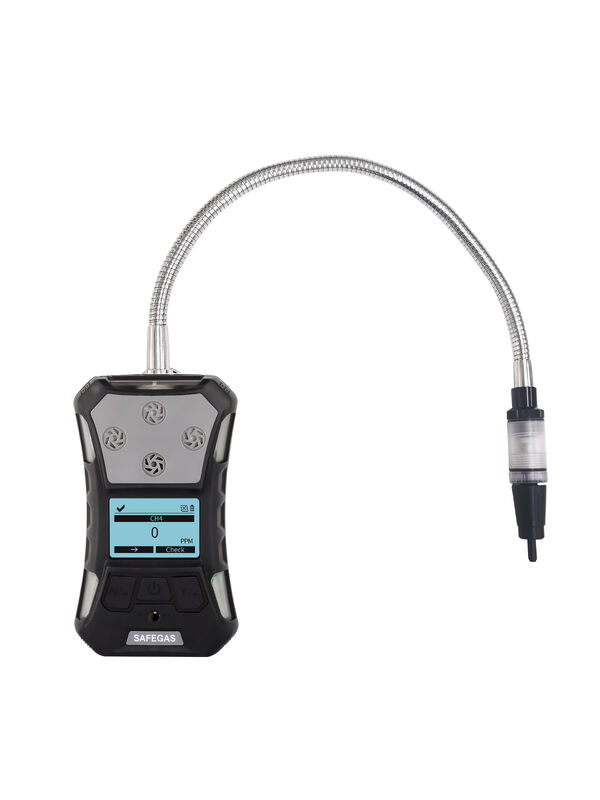

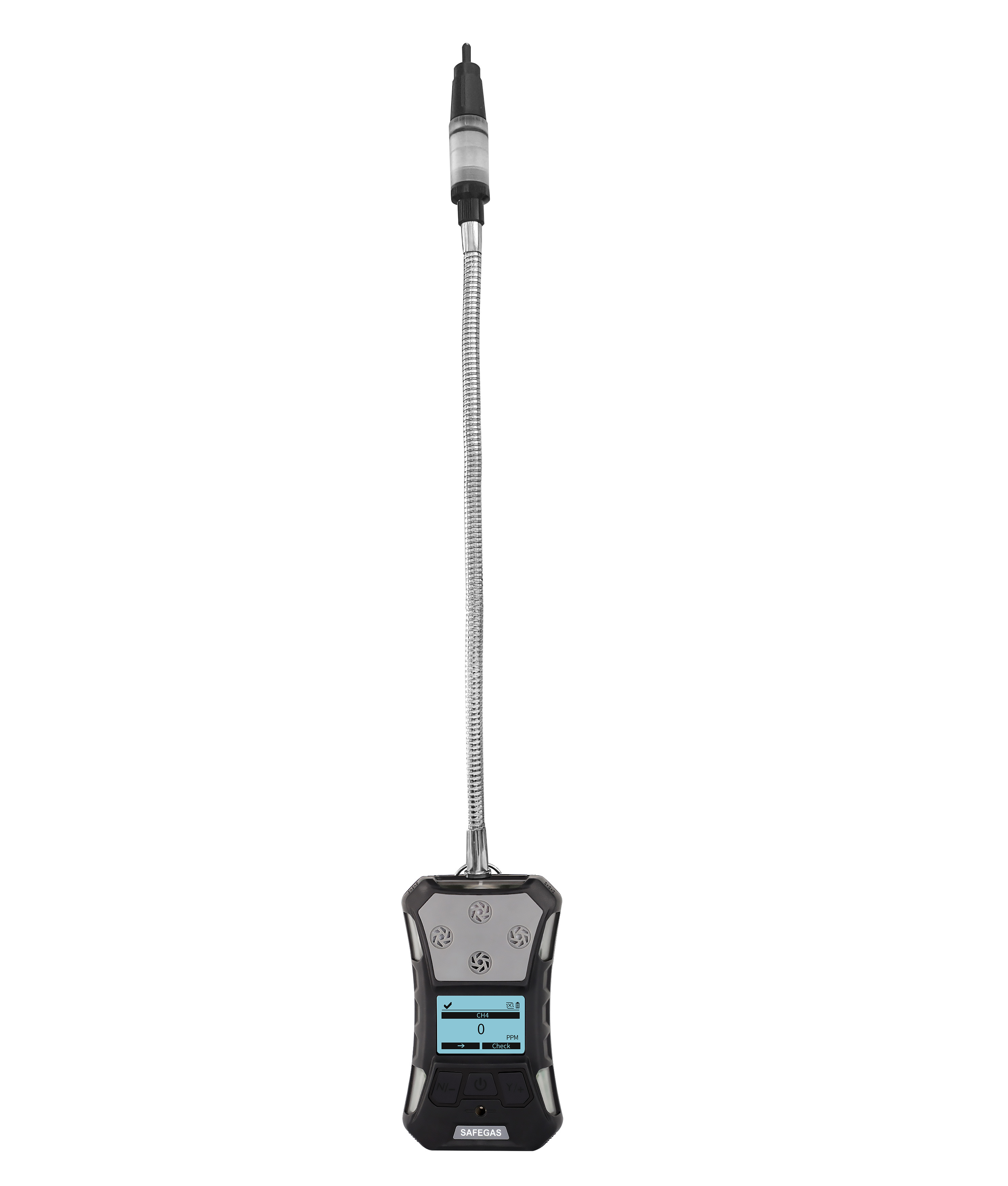

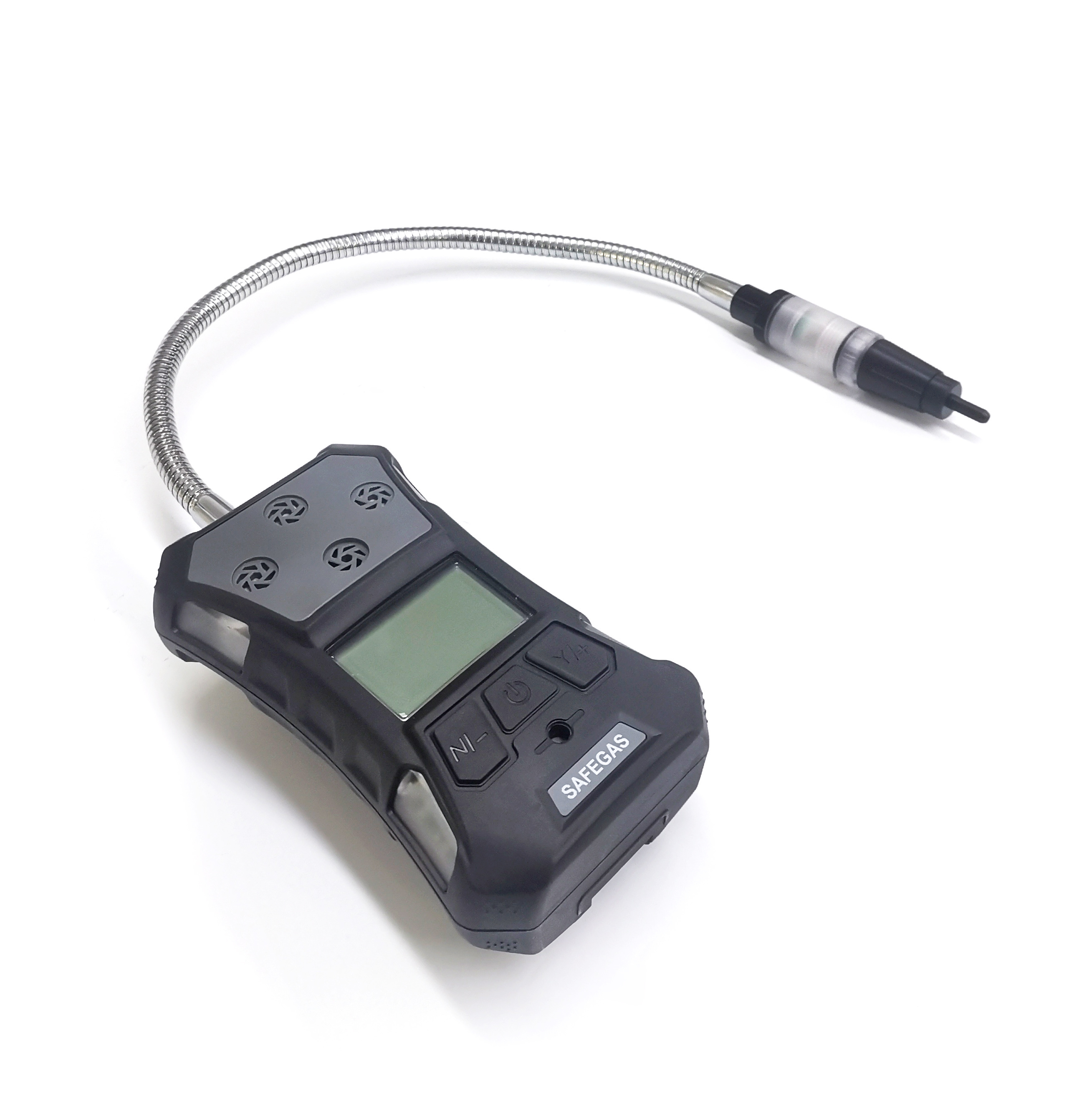

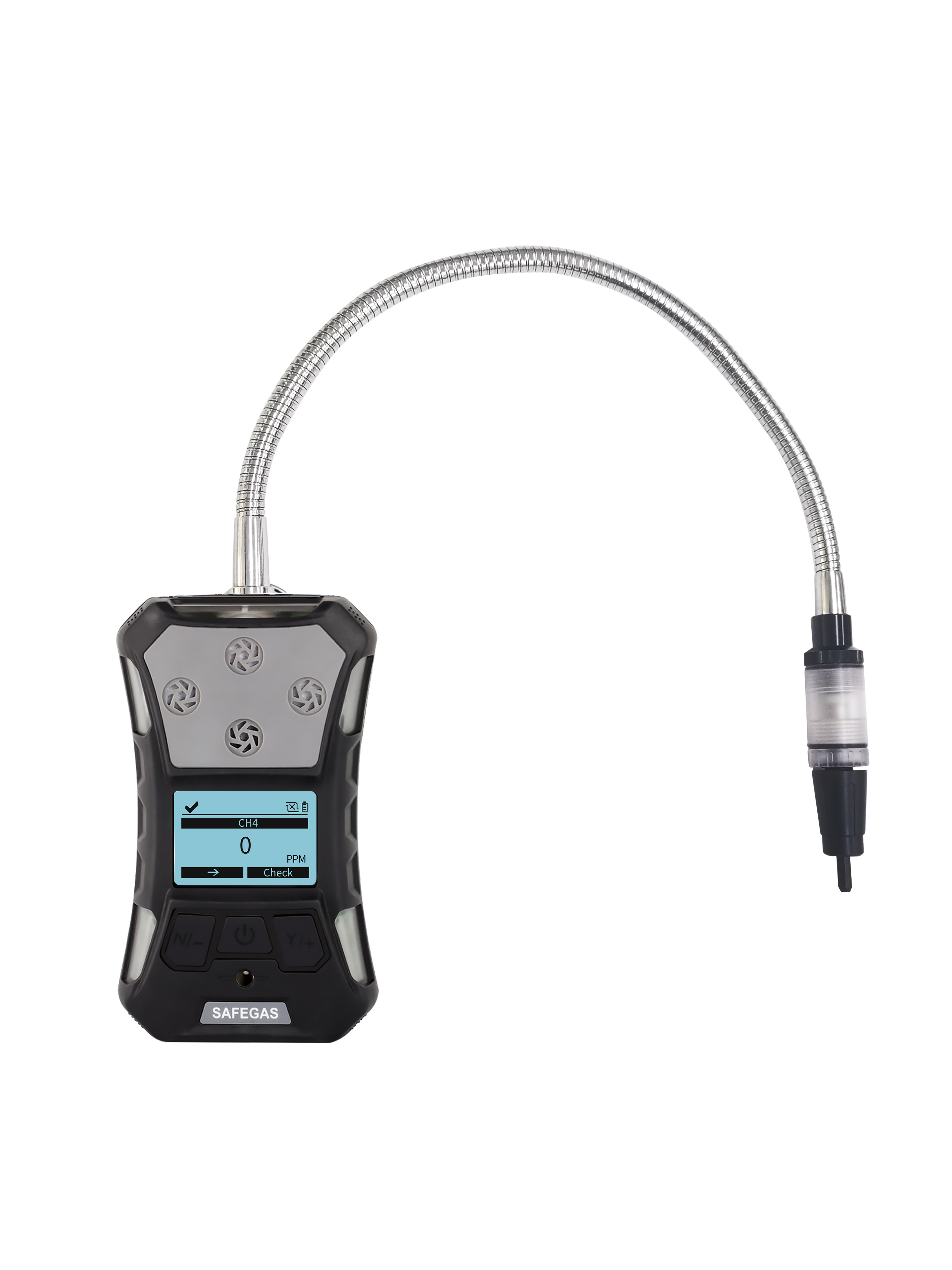

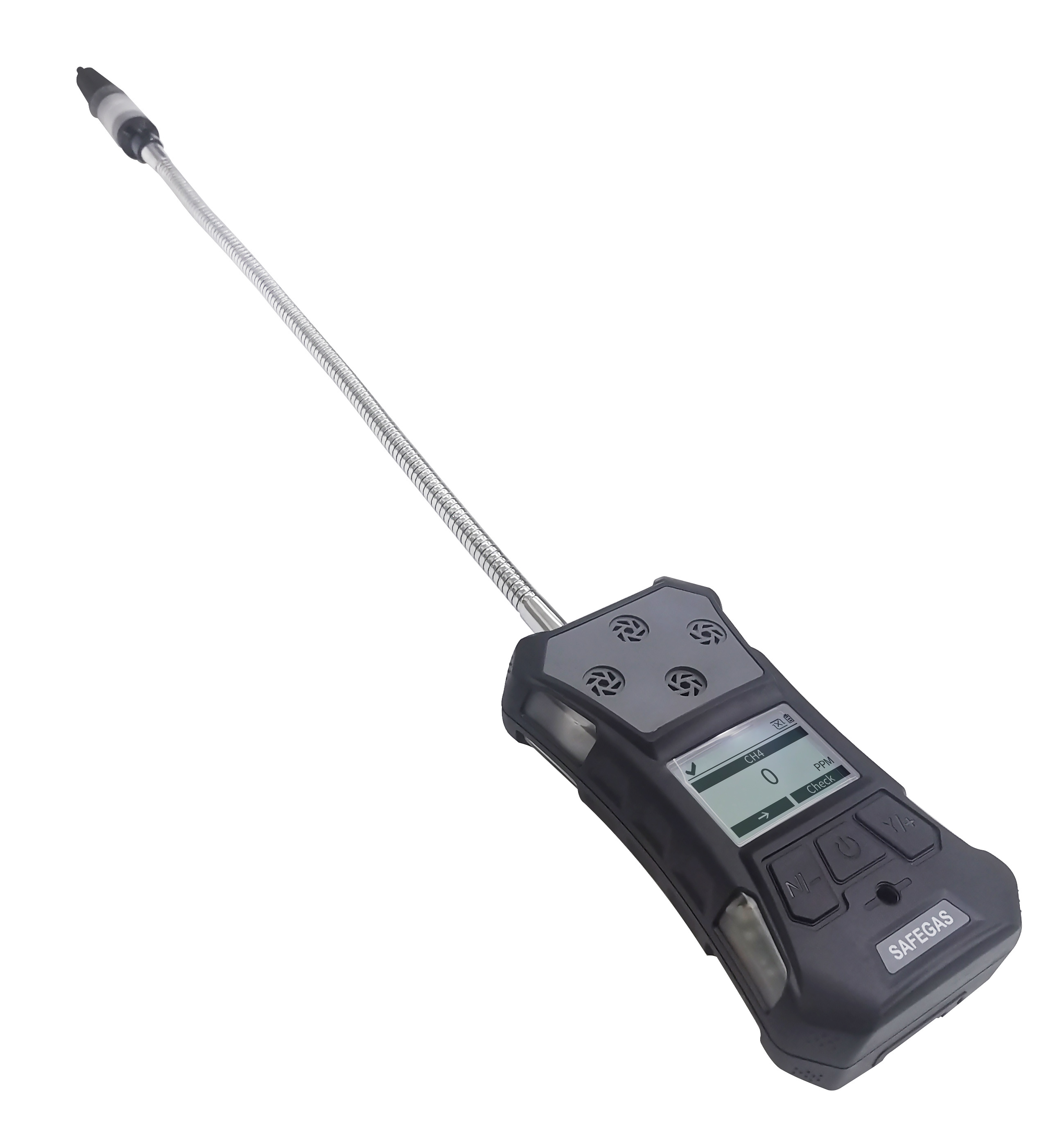

Product Images

Key Features & Advantages

Simultaneous detection of up to 4 gases (O2, CH4, CO, H2S) with comprehensive alarm systems
Methane leak detection across three distinct ranges (ppm / LEL / %Volume) with auto-ranging capability
Flexible probe for underground leak testing with included barhole probe
Rugged IP67-rated polycarbonate casing for harsh environments
One-button factory reset and 180° rotatable large graphical display
Configurable backlight function with manual timing control
Low power consumption providing over 15 hours continuous operation
Remote firmware upgrade capability for ongoing performance enhancements

Technical Specifications

Parameter	Specification
Gas Detected	CH4
Detection Principle	Semiconductor/Catalysis Principles
Measurement Range	CH4: 0-10000ppm, 0-100%LEL, 0-100%VOL
Resolution	1ppm, 1%LEL, 1%VOL
Response Time	≤30 seconds
Precision	≤±1-5%F.S (except special gases)
Language Support	Chinese/English/Polish (customizable)
Display	LCD (160 x 96 pixels), 180° rotation
Data Recording	100,000 readings with adjustable 5-3600 second intervals
Alarm System	95dB buzzer, flashing LED, vibration, screen indicators, diagnostic alerts
Battery & Operation	3.7V 2200mAh lithium battery, >15 hours continuous use
Environmental Rating	IP67 protection, -20℃ to +50℃ operating temperature
Dimensions & Weight	15784.559.5mm, 365g (including accessories)

Standard Configuration

Gas detector unit (1 piece)
12V/1A DC power adapter (1 piece)
USB cable (1 piece)
User manual and warranty card
Flexible probe for underground detection
Protective aluminum carrying case

Why Choose Safegas?

With over 25 years of R&D experience and comprehensive certifications including ISO9001, ISO45001, IECEx, ATEX, and CE, Safegas delivers professional gas detection solutions backed by extensive industry expertise.

ISO9001 ISO45001 Quality and safety management systems
IECEx ATEX CE International product certifications
Rapid 5-7 day delivery with 80,000 unit annual production capacity
24/7 professional technical support and customer service

Safegas specializes in environmental monitoring equipment and systems across multiple industries including Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, and Municipal Engineering.

Etiket:

Menşe yeri:	Çin
Marka adı:	SAFEGAS
Sertifika:	ATEX/EMC/IECEX
Model numarası:	SKY3000-SP

Min sipariş miktarı:	1
Fiyat:	pazarlık edilebilir
Ambalaj bilgileri:	Karton (342414cm)
Teslim süresi:	3 iş günü
Ödeme koşulları:	T/T, Western Union
Yetenek temini:	Ayda 300 parça
