0-100PPM Handheld H₂O₂ Gas Detector for Disinfection and Medical Industry
Hydrogen peroxide (H₂O₂) is widely used in medical disinfection, clinical chemistry, dyeing and bleaching, and food testing applications. Disinfection supply centers and operating room inspection departments require hydrogen peroxide low-temperature plasma sterilizers, where gas leaks or excessive residual concentrations can pose health risks. The maximum allowable concentration is typically 1.4mg/m³ (approximately 1ppm), making reliable H₂O₂ detection essential.

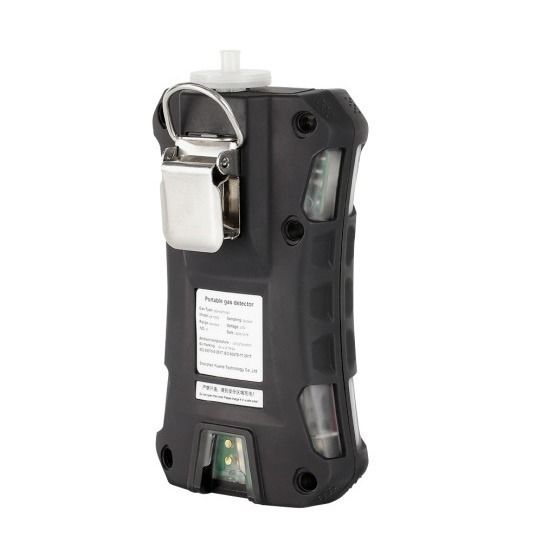

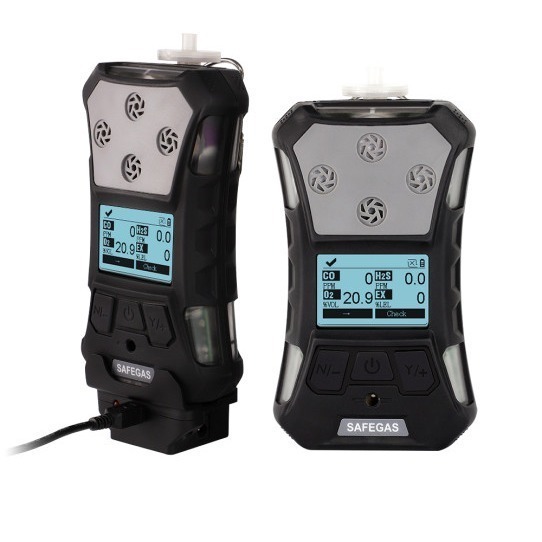

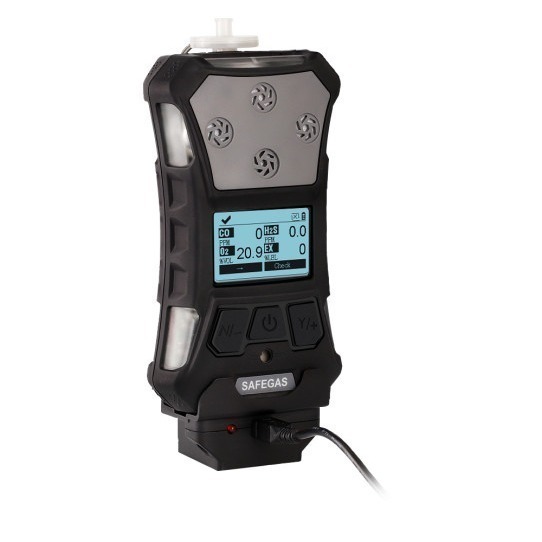

SKY3000 Portable Gas Detector
The SKY3000 series is a high-performance portable gas detector capable of simultaneously monitoring multiple gases including oxygen compounds, VOCs, combustible gases, and toxic gases. Featuring man-down alarm functionality, this device offers user-friendly operations including one-key security detection, one-key storage, automatic screen rotation, and optional Bluetooth data transmission for real-time monitoring.
Product Advantages
Rugged and Durable
- Withstands 3-meter drop tests
- IP67 protection rating for dust and water resistance
- EMC anti-static interference tested for reliable operation in walkie-talkie environments
Explosion-Proof Circuit Design
- Certified with IECEX, ATEX, and Chinese explosion-proof standards
- Explosion-proof level: Exia IICT4 Ga
Multiple Security Protection
- Man-down alarm enhances operator safety in underground operations
- Password protection prevents unauthorized parameter modifications
- Safety reminders with sound, light, and vibration alarms
Multi-Gas Detection Capability
- Simultaneous detection of 1-4 gases
- Multiple numerical displays: real-time, TWA, STEL, MAX, MIN values
Advanced Display and Detection System
- 180-degree auto-rotating screen for versatile viewing angles
- Built-in powerful sampling pump for rapid detection
- External 20m sampling tube for long-distance or confined space monitoring
- Pump suction and diffusion dual-mode operation
- Water trap filter removes water, oil, dust and other impurities
User-Friendly Operation
- Intuitive user interface with easy navigation
- Optional Bluetooth for real-time data transmission to mobile/PC
- Standard data storage with one-click export functionality
- Unique modifiable ID identification for instrument management
- Automatic detection functions with voltage and pump failure alerts
- One-key security detection
- PPM and mg/m³ unit conversion
- Individual sensor channel factory reset capability
- Multi-language support including English and Chinese
Technical Specifications
| Sampling Method | Pump Suction |
| Gas Type | H₂O₂ |
| Measure Range | 0-50, 100PPM |
| Resolution | 0.01PPM |
| Response Time | ≤10 seconds |
| Precision | ≤±1%F.S |
| Language | English (Other languages customizable) |
| Display | Monochrome graphics (160 x 96), auto-flip screen |
| Data Record | 100,000 data sets, adjustable storage interval (5-3600 seconds) |
| Alarm | 95dB buzzer, vibration, flashing LED, screen indication, diagnostic alerts, battery undervoltage, pump block, man-down alarm |
| Battery | 3.7V rechargeable lithium battery, 2200mAh capacity |
| Working Hours | More than 15 hours continuous pumping |
| Charger | Travel charger with DC interface, ≥4 hours charging time |
| Explosion-proof Grade | IECEX/ATEX(II IG Ex ia IIC T4), CNEX:Ex ia IIC T4 Ga |
| Protection Grade | IP67/IP68 |
| Working Temperature | -20ºC to +50ºC |
| Humidity | 0-90%RH (no condensation) |
| Environmental Pressure | 86-106Kpa |
| Size | 157×84.5×59.5mm (including back clip/water trap filter) |
| Weight | 365g (including battery, belt clip and filter) |
Standard Configuration
- Gas detector: 1 piece
- 12V/1A DC power adapter: 1 piece
- USB cable: 1 piece
- User manual: 1 piece
- Warranty card: 1 piece
- Filter: 1 piece

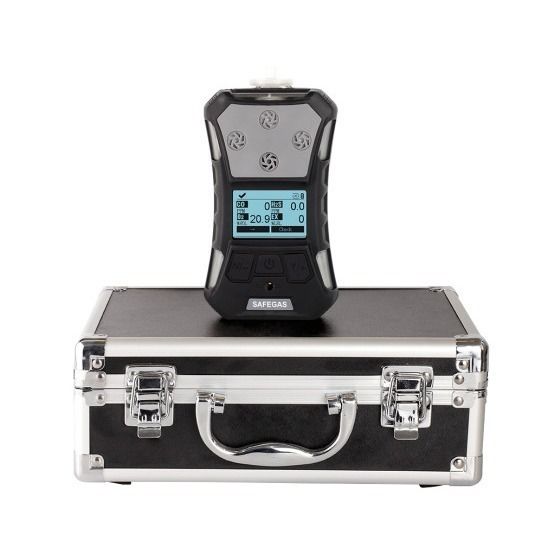

- Aluminum suitcase: 1 piece
Why Choose Safegas?
- R&D team experience: Over 25 years
- Company certification: ISO9001, ISO45001
- Product certification: IECEx (the only one in China), ATEX, CE
- Delivery: 5-7 days
- Yearly capacity: 80,000 units
- Service: Professional sales staff provide 7*24 hours service
Safegas specializes in environmental monitoring equipment and systems with 16 years of industry experience. Our core product line includes comprehensive gas detection solutions for Oil, Chemical, Pharmaceutical, Energy, Environmental Protection, Electronics, Municipal Engineering, Agriculture, and Household Appliances sectors.
For years, Safegas has maintained the management philosophy: "Market is orientation. Innovation is motivation. Quality to survival. Development to growth." Our corporate culture emphasizes collaboration, innovation, and customer-centric service to earn trust and support from clients worldwide.
Through independent R&D, collaborative development, and adoption of international technologies, Safegas products achieve domestic advanced standards and compete effectively with global brands. We continuously pursue development to meet diverse customer requirements.
