| Gaz tespit edildi: | VOC | Algılama Prensibi: | PID |
|---|---|---|---|
| Güç: | 12-24V DC | Kesinlik: | ≤ ±%2-5 FS |
| Yanıt Süresi (T90): | 15-30'lar | Tekrarlanabilirlik: | ≤ ±% 1 |
| Pompa akışı: | 0.35-0.5 l/dk | Sıcaklık: | –20 ℃~ 55 ℃ |
| Alarm (isteğe bağlı): | Buzzer, Ekranda Alarm Durumu İstemi, Yüksek ve Düşük Alarm Değerleri Müşteri tarafından ayarlanabili | Nem (yoğuşma yok): | %0-95 RH (Yoğuşma yok) |
| Vurgulamak: | Built-in Sampling Pump Fixed VOC Gas Detector,Fast Response Multi Gas Detector,RS485 4-20mA Output PID Gas Detector |
||

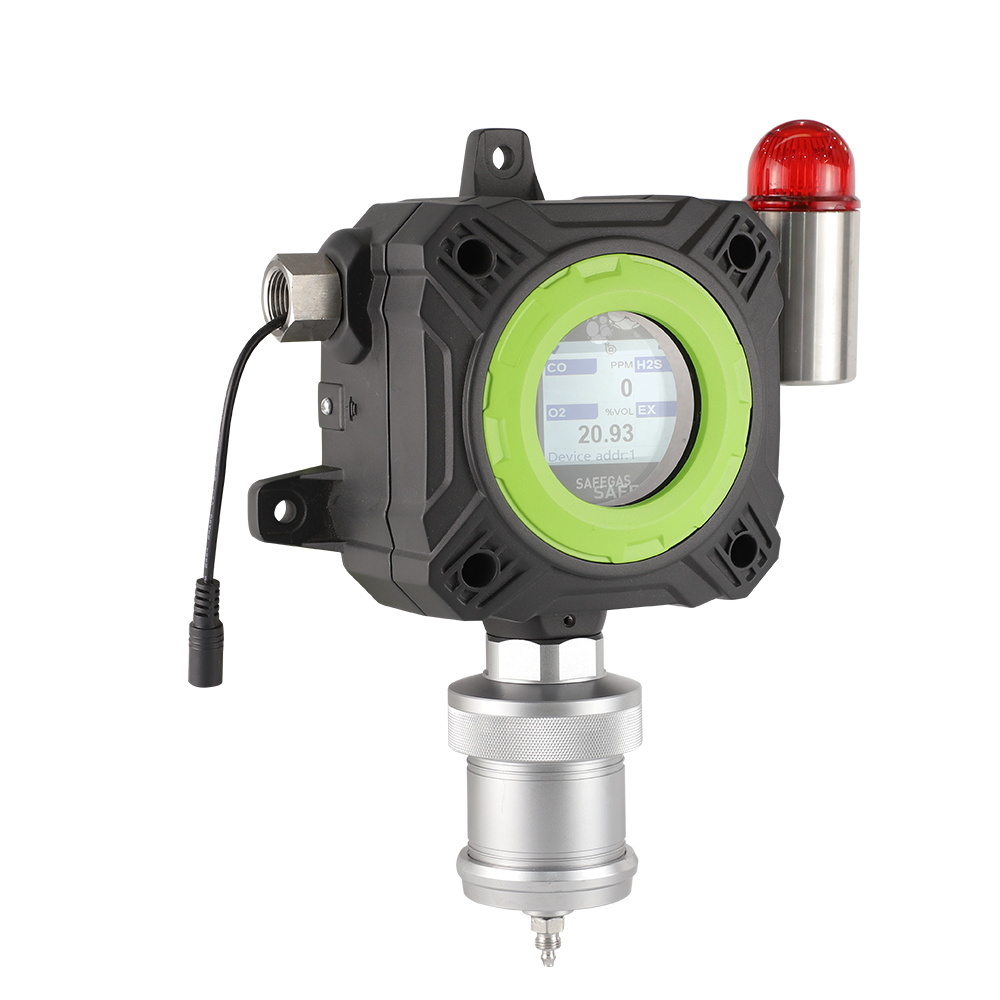

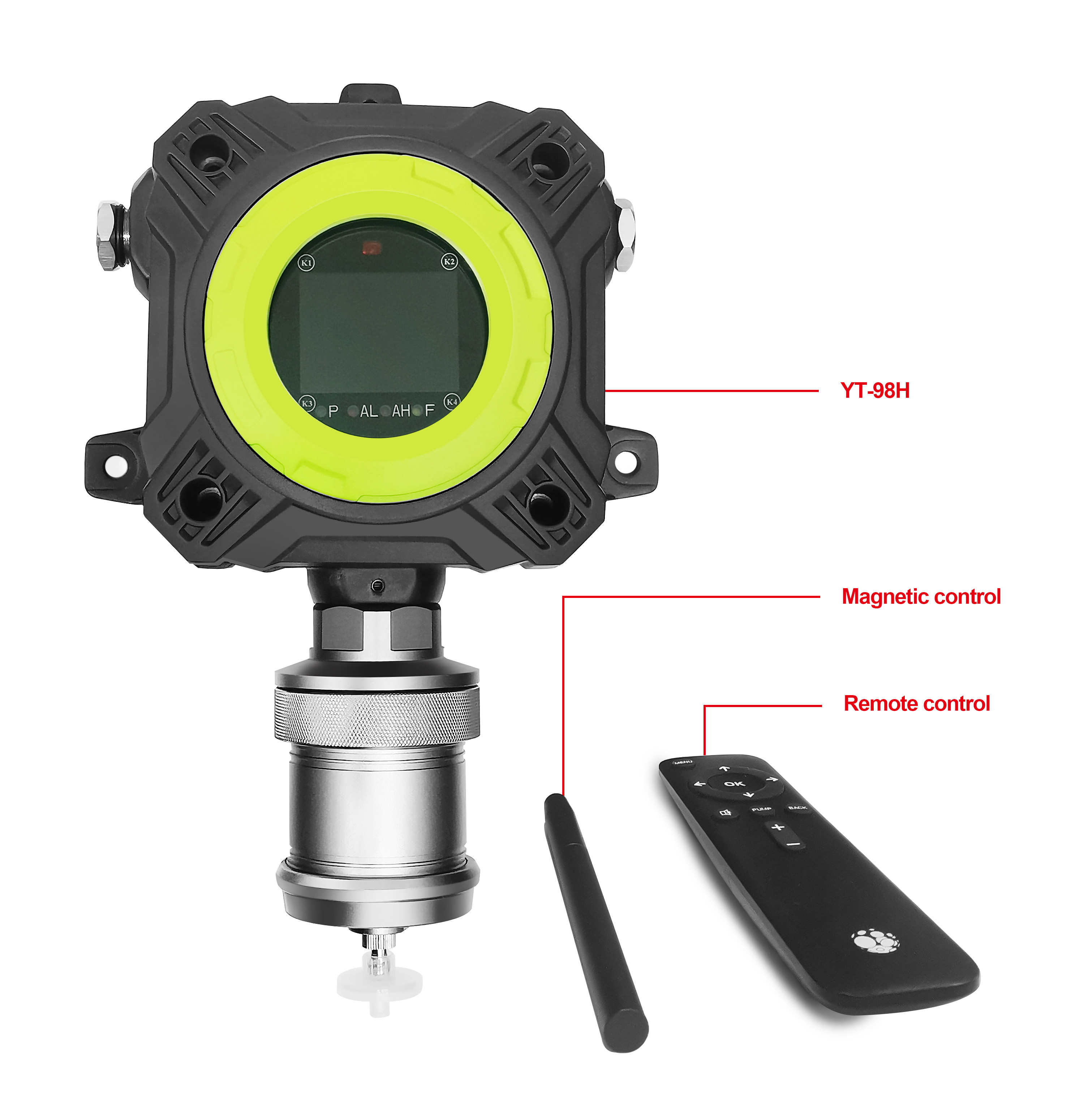

Chemical Plant TVOC Emission Online Inspection - Built-in Sampling Pump with Fast Response PID Sensor Build in Pump Fixed VOC Detector with RS485 and 4-20mA Output Product Overview The YT-98H is a high-end fixed gas detector designed for critical gas monitoring applications, particularly in the oil and gas industry. Specifications Parameter Specification Gas Detected VOC Detection principle PID Install method Wall-mounted, piping type, flow-type Measure Range 0-100PPM
