| Hedef Gaz: | Amonyak (NH3) | Algılama Prensibi: | elektrokimyasal sensör |
|---|---|---|---|
| Ölçüm Aralığı: | 0-100/200/500/1000/2000/5000ppm | Kesinlik: | ≤ ±%2-5 FS |
| Çalışma voltajı: | 12-24VDC | Koruma Sınıfı: | IP66 / IP68 |
| Boyut: | 157.8 × 128.8 × 69.6mm | Muhafaza Malzemesi: | Döküm alüminyum; S316 paslanmaz çelik isteğe bağlı |
| Vurgulamak: | Continuous Monitoring Ammonia Gas Detector,IP66 IP68 NH3 Gas Detector,Electrochemical Sensor Ammonia Monitor |
||

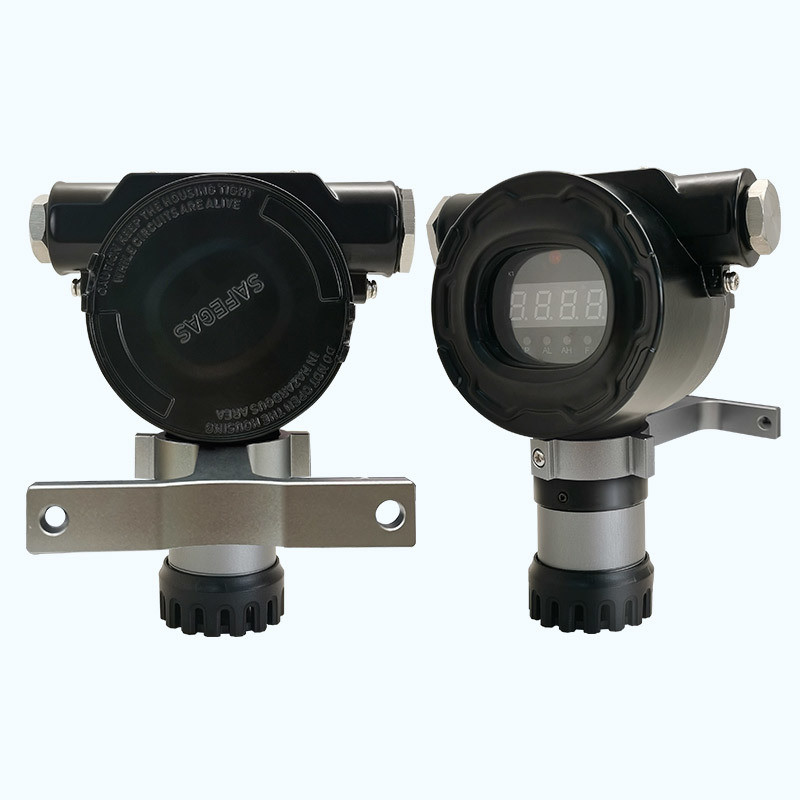

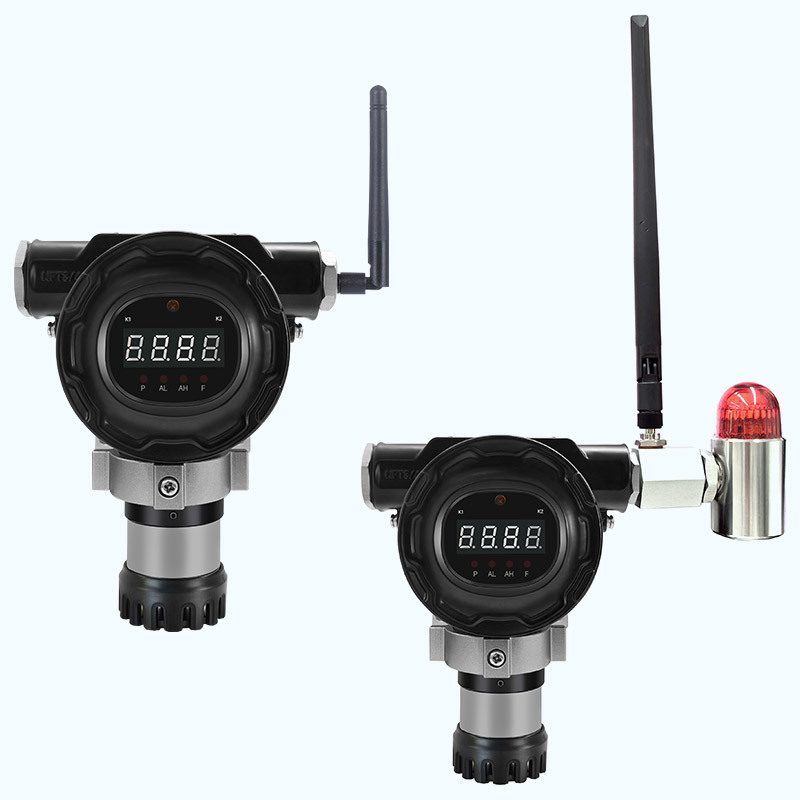

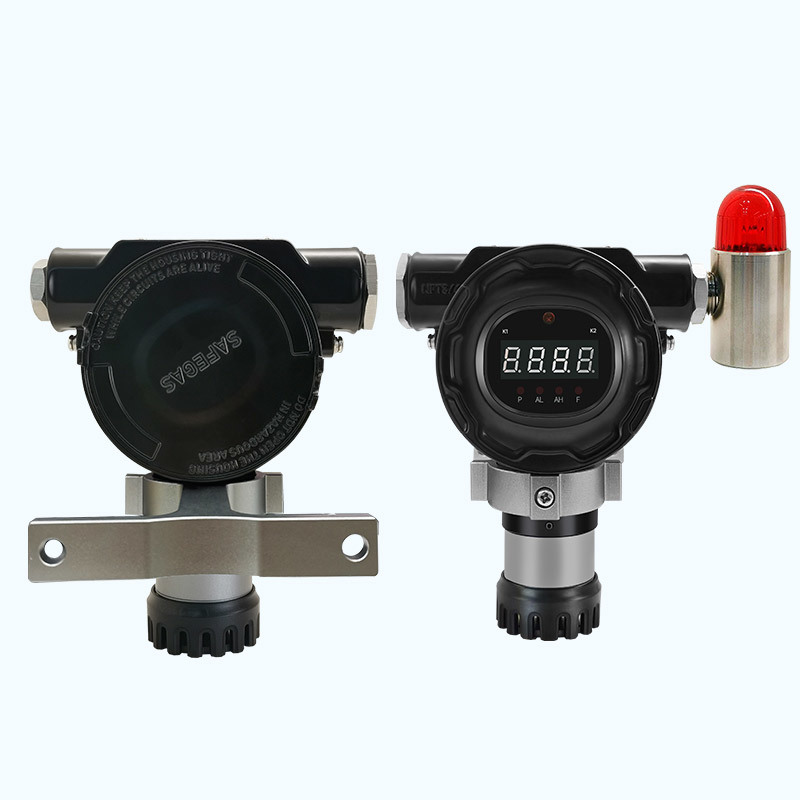

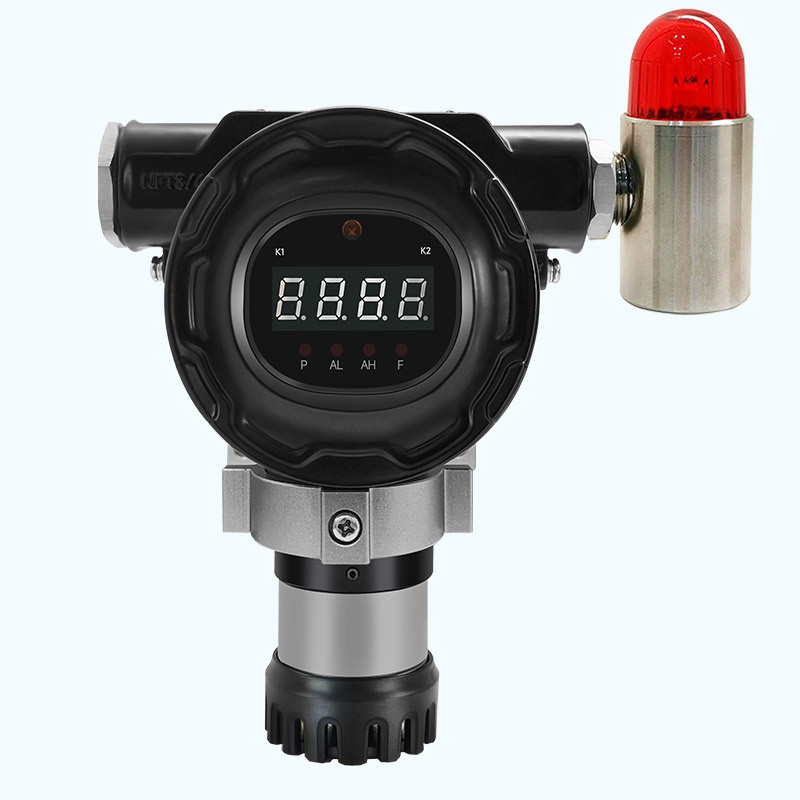

Product Overview The SG100 is a cost-effective, IECEx & ATEX-certified explosion-proof fixed online gas transmitter designed for continuous ammonia (NH3) monitoring. It uses an electrochemical sensor and offers multiple optional measuring ranges: 0-100 / 200 / 500 / 1000 / 2000 / 5000 ppm. Featuring IP66/IP68 ingress protection, an intelligent plug-and-play sensor module, multiple standard signal outputs, and optional wireless transmission, it also supports magnetic remote
